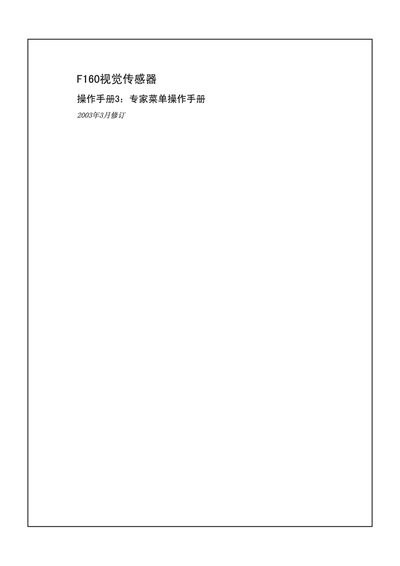

This manual describes the expert menu functions of the Omron F160 vision sensor, including measurement methods, dual‑camera setup, and various operating modes. It guides qualified operators through startup, image display, and configuration of detection conditions.
Additional sections cover system settings, display details, data backup, BUSY signal usage, and a comprehensive troubleshooting guide to help resolve common issues. This manual is written in Chinese.
Use the startup procedure described in section 2‑1 of the manual.
The backup function is explained in section 6 on page 258.
Refer to the BUSY signal usage instructions in section 6 on page 314.
Troubleshooting guidance is provided in section 7 on page 324.
