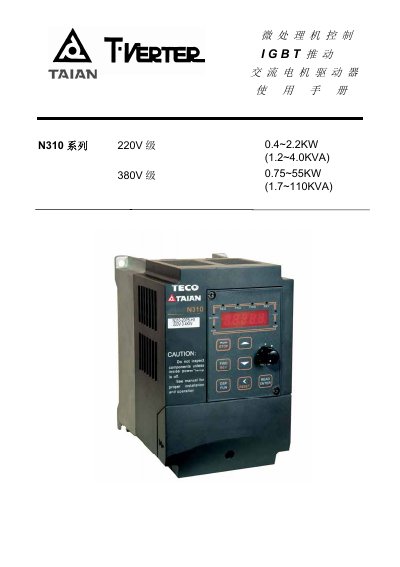

This document is a user manual for the N310 series 220V class and 380V class IGBT-driven AC motor drive. It provides information on safety precautions, model specifications, usage environment and installation, software index, troubleshooting and maintenance.
This document covers all aspects of using the N310 inverter, including safety precautions, wiring, panel operation, control modes and parameter configuration. It also contains a quick‑start guide for fast commissioning and detailed fault‑diagnosis procedures.
The manual is organized into chapters such as Safety Notes, Model Overview, Installation, Panel Operation, Control Modes, Parameter Tables, Fault Handling and Foreign Component specifications, providing clear instructions for both basic users and technicians. This manual is written in Chinese.
Press the RUN key on the front panel; the LED indicator will turn on and the display will ramp the frequency from 0.00 to the set value.
The FWD LED lights when the inverter is running in the forward direction and turns off when the motor stops.
Use the * key on the panel to adjust the frequency; the display shows the new value and you must press READY to confirm.
