QD-7324GS Network Switch User Manual

This user manual introduces the basic functions and usage methods of QD-7324GS managed switch

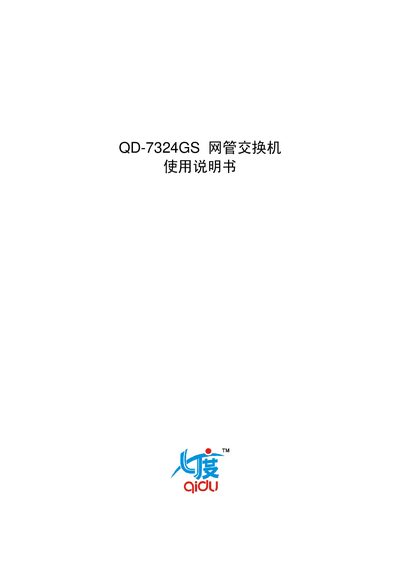

QD-7324GS Network Switch User Manual - cover page
Brand
QD-7324GS
Category
Network Switches
Document type
User Manual
Language
Chinese
Pages
31
File format
PDF
File size
679 KB
Published
16 March, 2012
Updated
30 September, 2023
MD5 checksum
5203D49A41501A35933B9C0F15C56BEC
PDF
QD-7324GS Network Switch User Manual PDF

About this manual

The QD-7324GS is a 24‑port 10/100/1000 Mbps Ethernet switch with a full set of management functions, including web‑based configuration, VLAN, LACP, RSTP, IGMP snooping, QoS, and storm control. The manual describes the front and rear panel layout, indicator LEDs, and power requirements.

Installation steps cover mounting, connecting UTP ports, power supply, and initial configuration via the web interface or RS232 console. Detailed sections explain system settings, port configuration, VLAN and trunk setup, and monitoring tools such as statistics and status pages. This manual is written in Chinese.

What's inside

  • Product Overview
  • Front Panel Description
  • Rear Panel Description
  • LED Indicators
  • Performance Features
  • Installation Procedure
  • Port Connection Guide
  • Web Management Interface
  • RS232 Console Management

Specifications

Number of Ethernet ports24
Port speed10/100/1000 Mbps
Maximum frame size1518 bytes
VLAN capacity16 VLANs
RSTP supportYes
IGMP SnoopingEnabled
Port mirroringSupported
Quality of ServiceSupported (IEEE 802.1p)
Power input110‑260 V AC, 50‑60 Hz
Console baud rate115200 bps

Frequently asked questions

How many Ethernet ports does the QD-7324GS have?

The switch provides 24 Ethernet ports.

What is the default IP address of the QD-7324GS?

The default IP address is 10.10.10.168.

What baud rate is used for the RS232 console connection?

The console operates at 115200 bps.

Does the QD-7324GS support RSTP?

Yes, it supports Rapid Spanning Tree Protocol (RSTP).
