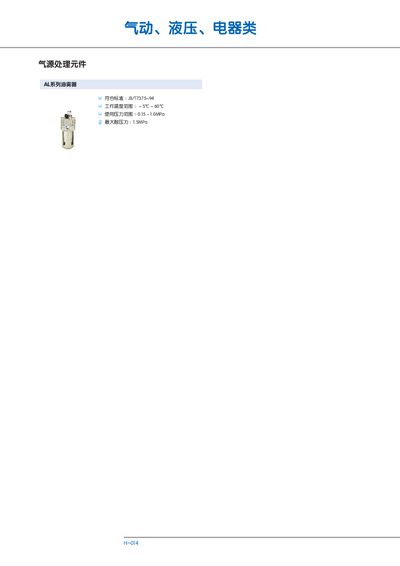

This document describes the features and characteristics of products such as the AL series oil mist separator, AF/BF series filters, and AR/BR series pressure regulators.
The AL series oil mist devices are air‑source treatment components that comply with Chinese standards such as JB/T7375-94. They are designed for operating temperatures from –5 °C to 60 °C and can withstand pressures up to 15 MPa.
Various related series are listed, including ALBL, NL, NU, AR/BR, SFC, NFR and PU, each with its own standard references, filter accuracies (5 µm‑40 µm) and pressure specifications. The document provides the basic performance parameters for each product variant. This manual is written in Chinese.
| Working temperature range (AL series) | -5 °C ~ 60 °C |
|---|---|
| Maximum pressure (AL series) | 15 MPa |
| Standard (AL series) | JB/T7375-94 |
| Filter precision (NU series) | 5 nm |
| Working temperature range (NU series) | 0 °C ~ 60 °C |
| Maximum pressure (NU series, manual drain type) | 16 MPa |
| Maximum pressure (NU series, automatic drain type) | 12 MPa |
| Pressure range (PU series) | 0.05 MPa ~ 0.95 MPa |
It complies with the Chinese standard JB/T7375-94.
The NU series uses a filter precision of 5 nm.
The manual‑drain type can handle up to 16 MPa.
It can regulate pressure from 0.05 MPa to 0.95 MPa.
