Provides technical parameters of standard cylinders, thin cylinders, mini cylinders, including compliance with standards, installation methods, lubrication, working temperature range, use pressure range, maximum pressure resistance, use speed range, cushioning type, etc.

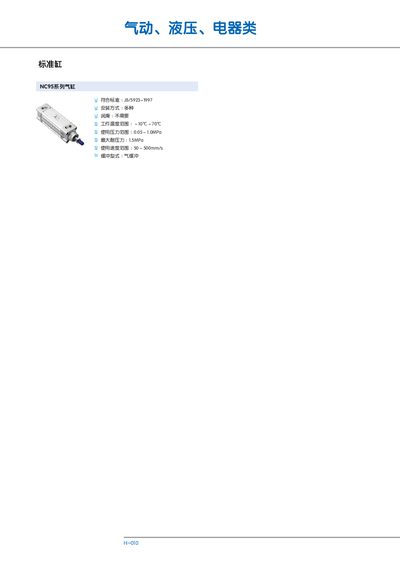

This document provides key technical data for the NC95 series pneumatic cylinders and related models such as NSDAT, NCJ2, NCM2, and others. All cylinders comply with the JB/5923-1997 standard and are offered with multiple installation options.
Typical specifications include operating temperature ranges from -10 °C to 70 °C, pressure ranges up to 10 MPa, maximum pressure ratings up to 15 MPa, and speed ranges from 50 to 500 mm/s. Lubrication is not required and the cylinders use air or rubber buffering as indicated. This manual is written in Chinese.
| Operating temperature range | -10 °C ~ 70 °C |
|---|---|
| Pressure range | 0.05 MPa ~ 10 MPa |
| Maximum pressure | 15 MPa |
| Speed range | 50 ~ 500 mm/s |
| Buffer type | Air cushion |
| Standard compliance | JB/5923-1997 |
They meet the JB/5923-1997 standard.
The cylinders operate from -10 °C to 70 °C.
The maximum pressure rating is 15 MPa.
