TK series terminal block is suitable for AC 50Hz(or 60Hz) rated voltage up to 690V( , rated current up to 100A in power and control circuits, and used for wire connection.
The TK series electricity road controller is designed for AC power applications up to 690 V and rated currents from 10 A to 100 A. The document outlines compliance with relevant standards and gives general information on model identification and connection requirements.

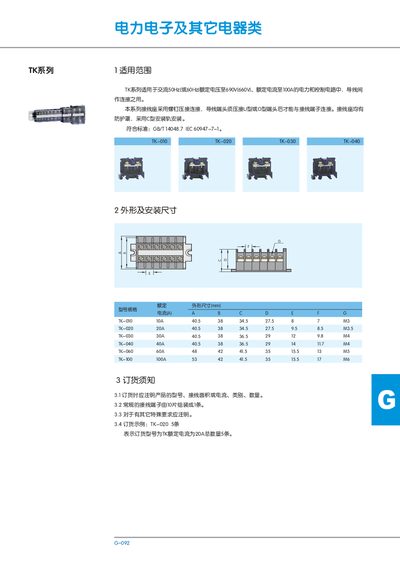

A detailed table lists each model (TK‑010, TK‑020, TK‑030, TK‑040, TK‑060, TK‑100) with its rated current and physical dimensions. Installation notes describe the type of terminal blocks, mounting options, and special wiring considerations. This manual is written in Chinese.
| Rated voltage | up to 690 V |
|---|---|
| TK‑010 rated current | 10 A |
| TK‑020 rated current | 20 A |
It supports a rated voltage up to 690 V (660 V).
Each unit is assembled with 10 connection terminals.
It complies with GB/T 14048.7 and IEC 60947‑7‑1.
