TD-JH9 series terminal block is used for connecting wires with a rated voltage of up to 690V(660V) and a rated cross-section of up to 25mm in AC 50Hz(or 60Hz) circuits.
The JH9 series from TD is designed for AC applications at 50 Hz or 60 Hz, with a rated voltage up to 660 V (690 V max) and a rated current up to 200 A. The series uses screw‑type terminals compatible with TU or TO style connectors and includes protective features for safe installation.

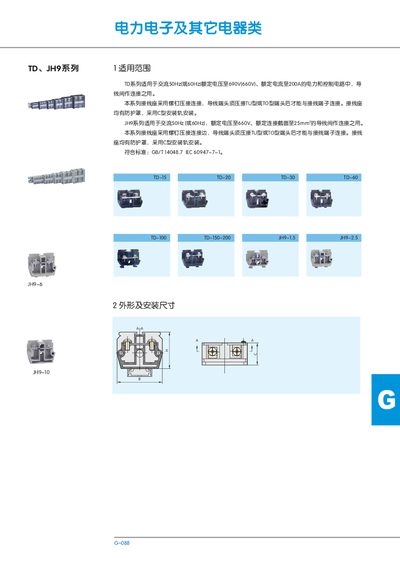

The leaflet lists the physical dimensions for each model, showing width, height and depth in millimetres, and provides example wiring configurations and mounting instructions. A table of model numbers and their corresponding dimensions is included for quick reference. This manual is written in Chinese.
| Rated Voltage | up to 660 V (690 V max) |
|---|---|
| Rated Current | up to 200 A |
| Dimensions (mm) – JH9‑6 | 43 × 14.5 × 33 |
| Dimensions (mm) – JH9‑10 | 52.3 × 18.3 × 42.2 |
The JH9 series is rated up to 660 V (690 V max) and up to 200 A.
Each contact is assembled from 10 terminals.
