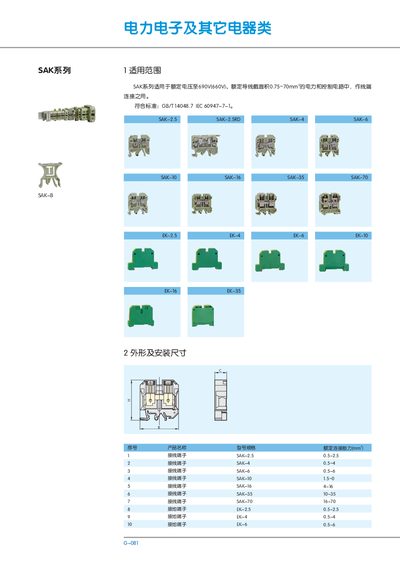

This document introduces the G-081 SAK-B SAK series 2 ~ SAK series, which is suitable for power and control circuits with a rated voltage up to 690V (660V) and a rated wire cross-section of 0.75-70mm. It conforms to the standards: GB/T 14048.7 IEC 60947-7-1. The products have different models and specifications, and can be used in power electronics and other electrical appliances.
The SAK series terminal blocks are intended for power and control circuits with rated voltages up to 690 V (660 V) and conductor cross‑sections from 0.75 mm² to 70 mm². They comply with GB/T14048.7 IEC 60947‑7‑1 and are used for line‑end connections.
The leaflet lists the physical dimensions and terminal ranges for each SAK model (e.g., SAK‑2.5, SAK‑4, SAK‑6, etc.) and provides ordering instructions, including required markings for model, cross‑section, and quantity. This manual is written in Chinese.
| Rated voltage | up to 690 V (660 V) |
|---|---|
| Conductor cross‑section range | 0.75 mm² – 70 mm² |
| SAK‑2.5 terminal range | 0.5 mm² – 2.5 mm² |
| SAK‑4 terminal range | 0.5 mm² – 4 mm² |
| SAK‑6 terminal range | 0.5 mm² – 6 mm² |
| SAK‑10 terminal range | 1.5 mm² – 10 mm² |
| SAK‑16 terminal range | 4 mm² – 16 mm² |
| SAK‑35 terminal range | 10 mm² – 35 mm² |
| SAK‑70 terminal range | 16 mm² – 70 mm² |
| Ground terminal EK‑2.5 range | 0.5 mm² – 2.5 mm² |
They are rated for voltages up to 690 V (660 V).
The terminals accept conductor cross‑sections from 0.75 mm² up to 70 mm², depending on the model.
Include the model, conductor size, and quantity, e.g., "SAK‑2.5/10 5条" for five strips of 2.5 mm² terminals.
They comply with GB/T14048.7 IEC 60947‑7‑1.
