JF5 series base closed type terminal block is suitable for frequency of 50Hz (or 60Hz), rated voltage up to 690V (660V), or DC 440V, rated cross-sectional area of 0.5~25mm of round copper conductor for connection. Using convenient wiring combination screws with TU, TO terminals and general G type mounting rail.

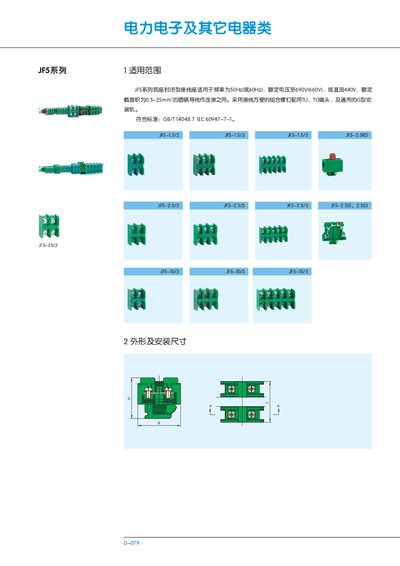

The JF5 series leaflets describe the mechanical and electrical characteristics of the connector family, including the various model numbers and their mounting dimensions. It lists the standard dimensions for each variant and the recommended connection methods.
The series complies with GB/T14048.7 and IEC 60947‑7‑1 standards, supports 50 Hz or 60 Hz line frequency, and is rated up to 690 V (660 V) AC or 440 V DC. Contact sizes range from 0.5 mm to 25 mm, and the terminals are designed for easy assembly using TU, TO, and universal C‑type fittings. This manual is written in Chinese.
| Rated frequency | 50 Hz or 60 Hz |
|---|---|
| Rated voltage | up to 690 V (660 V) AC or 440 V DC |
| Contact size range | 0.5 mm – 25 mm |
| Applicable standards | GB/T14048.7, IEC 60947‑7‑1 |
The JF5 series supports line frequencies of 50 Hz or 60 Hz.
It is rated up to 690 V (660 V) AC or 440 V DC.
The series complies with GB/T14048.7 and IEC 60947‑7‑1.
