RS1 series fuses have a rated working voltage of AC 50Hz/60Hz to 690V and a rated current of 100A for short circuit protection of semiconductor devices and their assemblies.

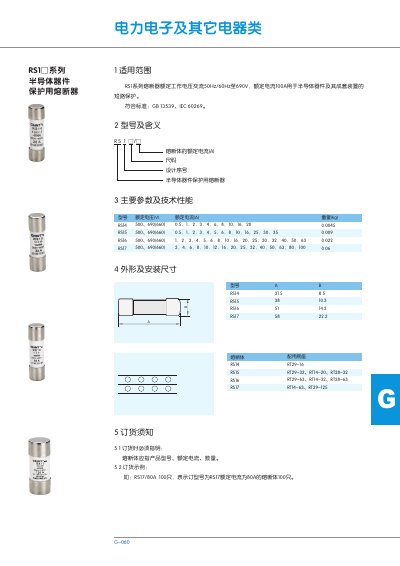

This leaflet describes the RS series fuses used for short‑circuit protection of semiconductor devices and their assemblies. It covers the applicable voltage range, current ratings, physical dimensions, and the bases required for mounting.
The document also provides ordering instructions, including how to specify model, rated current and quantity, and lists the technical parameters such as weight and power dissipation for each model variant. This manual is written in Chinese.
| Rated voltage | AC 50/60 Hz up to 690 V |
|---|---|
| Rated current range | 0.5 A – 100 A (varies by model) |
| Weight (kg) | 0.0045 – 0.06 kg depending on model |
The fuses are rated for AC 50 Hz/60 Hz operation up to 690 V.
Indicate the model, rated current and quantity, e.g., "RS711B/80A 100" for 100 pieces of RS711B rated at 80 A.
