RS71 type fuse has the advantages of high breaking capacity, good limiting characteristics, stable cyclic load characteristics and low power loss. It can reliably protect semiconductor devices, thyristors and their complete sets. The voltage level of the product is up to 1000V, the current specifications are complete, and the technical data is complete, which brings convenience to electrical engineers in selecting fuses, and also can be used as the ideal spare parts for semiconductor device protection fuses in various industries.

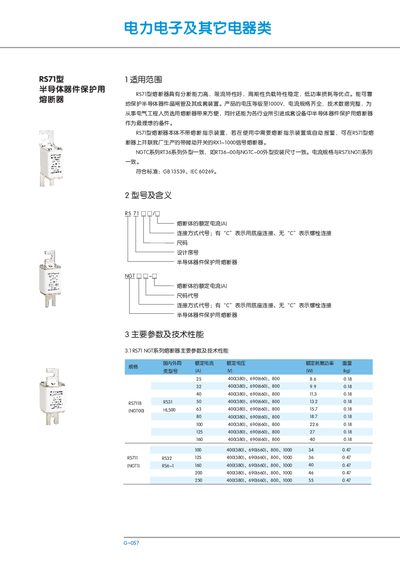

This manual describes the RS71 semiconductor protection fuse, highlighting its high breaking capacity, low power consumption, and suitability for protecting semiconductor devices. It includes the rated current, voltage ranges, and power dissipation for various fuse sizes.
The document also details the physical dimensions for mounting, the compatible base types, and the standard compliance (GB 13539, IEC 60269). Ordering instructions show how to specify the fuse rating and quantity. This manual is written in Chinese.
| Rated current | 25 A |
|---|---|
| Rated voltage | 400 V (380 V nominal) |
| Power dissipation | 8.6 W |
The RS71 fuse complies with GB 13539 and IEC 60269.
