The RT36 series fuse is a new type of fuse with small size, light weight, low power consumption, and high breaking capacity. It is widely used for overload and short circuit protection in electrical equipment.
The RT36 series knife‑type contact fuse is a compact, lightweight fuse designed for overload and short‑circuit protection in electrical equipment. The series is offered in two variants – “gG” for full‑range breaking capacity and “aM” for partial‑range motor protection – and complies with GB 13539 and IEC 60269 standards.

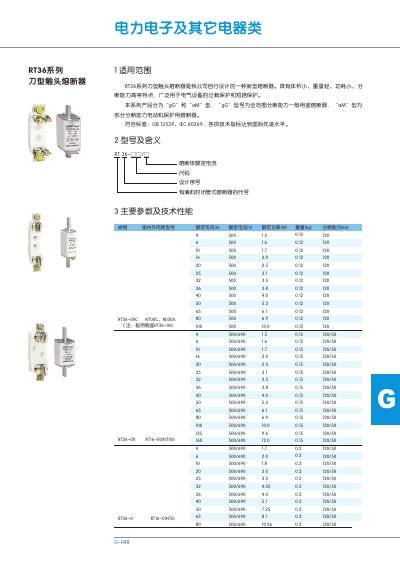

The document provides detailed specifications such as rated current, voltage, power, weight, breaking capacity, as well as physical dimensions of the fuse element and its base. Ordering instructions and cross‑references to equivalent models are also included. This manual is written in Chinese.
| Rated power (W) | 1.5‑10.0 |
|---|---|
| Breaking capacity (kA) | 120/50 |
The series is divided into “gG” type with full‑range breaking capacity and “aM” type for partial‑range motor protection.
The RT36 series meets GB 13539 and IEC 60269 standards.
The order must indicate the product model, rated current and quantity, e.g., RT36‑00/100A 100 pcs.
