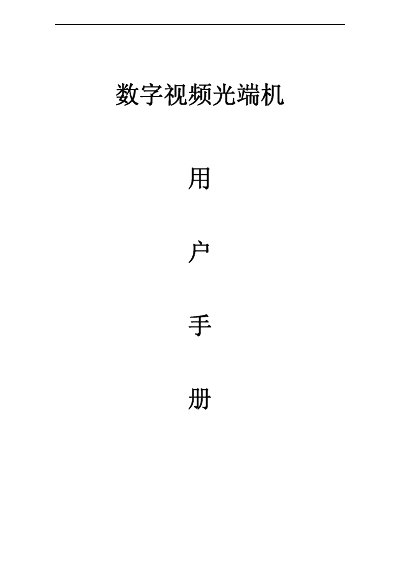

The digital video optical terminal is an advanced fiber optic transmission device that can integrate and transmit multiple signals such as video, data, and audio over long distances. The device provides a variety of interfaces and configuration options, supporting different signal formats and transmission distances. This user manual describes the 4-channel video optical terminal as an example.
The 4‑channel video optical transceiver integrates video, data, audio and Ethernet signals for long‑distance fiber transmission. It supports PAL, NTSC and SECAM composite video formats, offers a video bandwidth of 5‑10 MHz, and provides up to 120 km transmission distance on single‑mode fiber without repeaters.
The manual details unpacking, power connection, panel functions, video and data interface wiring, and installation steps. It also includes troubleshooting guidance and technical support information for reliable operation. This manual is written in Chinese.
| Number of video channels | 4 |
|---|---|
| Video bandwidth | 5‑10 MHz |
| Video code bits | 10 Bit |
| Supported video standards | PAL, NTSC, SECAM |
| Standard transmission distance (multimode) | 20 km |
| Maximum transmission distance (single‑mode, no repeater) | 120 km |
| Optical wavelength | 1310 nm / 1550 nm |
| Operating temperature range | -20 °C to +75 °C |
| Storage temperature range | -40 °C to +125 °C |
| Power supply voltage | 220 V AC |
Connect the supplied power adapter to an AC 220 V source and plug it into the POWER socket on the unit, ensuring the adapter voltage matches the panel marking.
The device can transmit up to 120 km on single‑mode fiber without any repeaters.
It supports PAL, NTSC and SECAM composite video formats.
The red FIB lamp lights when the fiber link is not connected or the optical signal is absent.
