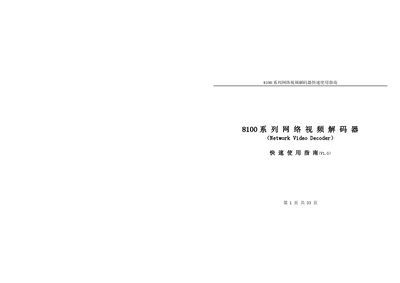

The 8100 series network video decoder quick user guide introduces the product's features, appearance, interface, software basic operations, remote control decoder, and software configuration decoder.
The guide introduces the main functions of the 8100 series network video decoder, including supported video formats, decoding modes and basic features such as PTZ control and alarm handling. It also lists the external ports and their functions, such as power, LAN, RS232/RS485, video and audio interfaces.
Basic operation steps are described, covering how to power the unit, configure network settings, use the controller or the provided management software, and perform common troubleshooting. A FAQ section provides answers to typical connection and configuration issues. This manual is written in Chinese.
| Power Supply | DC12V / 2.0A |
|---|---|
| Network Interface | RJ45 |
| RS232 Interface | RS232 port |
| RS485 Interface | RS485 port |
| Alarm Input | 4 channels |
| Alarm Output | 4 channels |
| Video Output | VGA (YGA) connector |
| Audio Input | BNC (balanced, mono) |
| Audio Output | BNC (balanced, mono) |
Make sure the RS485 parameters such as baud rate and address match the controller settings, and verify the physical wiring is correct.
