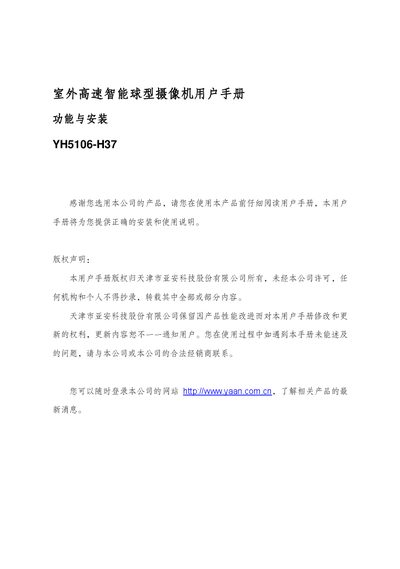

This manual introduces the features, technical parameters, installation methods and other information of the outdoor high-speed intelligent ball camera YH5106-H37.
This manual describes the YAAN YH5106-H37 outdoor high‑speed intelligent ball camera, a surveillance device with 360° continuous rotation, preset positions, and multiple scanning modes. It guides users through safe handling, installation steps, configuration, and routine upkeep.
Key sections include safety precautions, product introduction with technical parameters, detailed installation procedures, daily maintenance, and a simple fault‑repair appendix. The document also lists communication interfaces, supported protocols, and troubleshooting tips for common issues such as power loss or no‑image conditions. This manual is written in Chinese.
| Model | YH5106-H37 |
|---|---|
| Power Supply | AC24V+25%, 50/60Hz; DC24V+109% |
| Peak Power | <27W (up to 55W with fan‑cooling) |
| Horizontal Rotation Angle | 0~360° (continuous) |
| Vertical Rotation Angle | 0~ -95° |
| Horizontal Rotation Speed | 0.015~180°/s |
| Communication Interface | RS485/RS422 |
| Supported Protocols | Industry V0.0, Pelco‑P, Pelco‑D |
| Preset Positions | 236 |
| Menu Items | 255 |
Before wiping, disconnect the power and use a soft cloth; avoid liquid or spray cleaners and use a dry lens cloth for the protective glass.
The camera operates on AC 24 V ± 25 % at 50/60 Hz or DC 24 V ± 10 % and has a peak power of less than 27 W (up to 55 W with fan cooling).
