The SF380C water-cooled generator insulation resistance tester is designed for measuring the insulation characteristics of water-cooled generators. It features high accuracy, a user-friendly interface, automatic measurement and memory functions, and comprehensive protection.
The SF380C insulation resistance tester is designed for measuring the insulation resistance, absorption ratio, and polarization index of water‑cooled generators. It features a 2500 V test voltage, high‑precision micro‑current measurement, and an LCD display that stores results automatically.

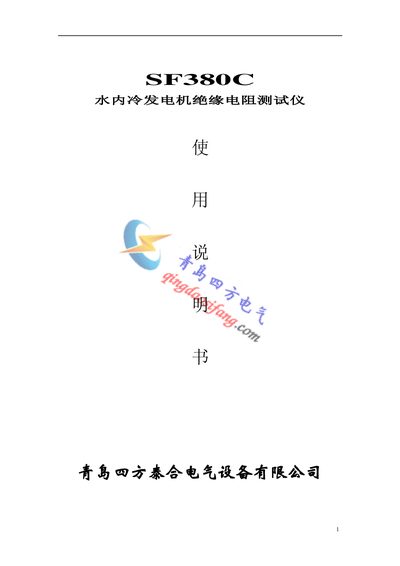

The manual provides safety warnings, step‑by‑step operating procedures, menu navigation, data storage, and settings adjustments. It also explains the instrument’s principle, environmental influences on measurements, and recommended discharge practices after testing. This manual is written in Chinese.
| Rated Voltage | 2500 V |
|---|---|
| Test Voltage | 2500 V |
| Measurement Range | 0 ~ 10 GΩ |
| Short‑circuit Current | >20 mA |
| Power Consumption | <250 W (A type <300 W) |
| Operating Temperature | 0 ℃ ~ +40 ℃ |
| Storage Temperature | -10 ℃ ~ +50 ℃ |
| Dimensions | 380 mm × 238 mm × 152 mm |
The device can measure insulation resistance up to 10 GΩ.
Yes, after the test completes the instrument automatically discharges and monitors the discharge process.
