This product is a micro flow sensor with features such as no drift, no lag, high accuracy, fast response speed, good repeatability, low power consumption, etc., which can accurately measure extremely small flow.

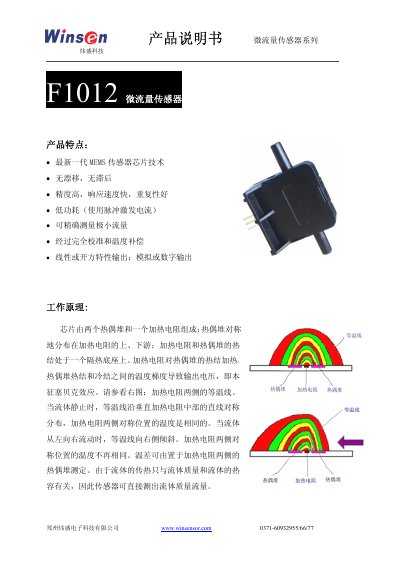

The F1012 micro flow sensor from Winsen uses MEMS technology to measure very small fluid mass flow rates with high accuracy, low drift and low power consumption. It operates on the Seebeck effect using two thermocouple stacks and a heating resistor to detect temperature differences caused by fluid flow.
The document lists typical application fields such as medical devices, HVAC systems, industrial process control and portable instruments, and provides detailed technical parameters, naming conventions, installation dimensions and warranty information. This manual is written in Chinese.
| Measurement range | 0.5–2000 mL/min |
|---|---|
| Supply voltage | 10.0 V DC |
| Working temperature | -25 °C to 65 °C |
The sensor can measure flow rates from 0.5 mL/min up to 2000 mL/min.
It operates from a 10.0 V DC power supply.
