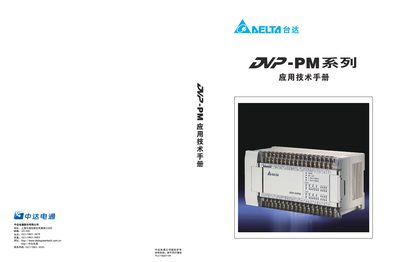

This manual introduces the program architecture, hardware specifications, various device functions, basic sequential instructions, application instruction classification and basic use, motion instructions and G-code classification basic use of DVP-PM
This manual provides detailed information for the DVP-PM series PLC controllers produced by Delta Green Tech. It describes the hardware specifications, wiring methods, communication ports, and the overall program architecture used for motion control and G‑code execution.
The document is organized into chapters covering program structure (O100 main program, OX sub‑programs, Pn sub‑programs), hardware configuration (COM1‑3 interfaces, dimensions, power), functional modules (basic, application, G‑code, POU), communication options (CANopen, Ethernet), and appendices with tables of supported features for each model variant. This manual is written in Chinese.
| COM1 Interface | RS‑232 |
|---|---|
| COM2 Interface | RS‑485 |
| COM3 Interface | RS‑232/RS‑485 |
| Program Capacity (DVP‑20PM) | 64K steps |
| Maximum Output Frequency (DVP‑10PM) | 1000 kHz |
The DVP‑20PM model supports up to 64 K program steps.
