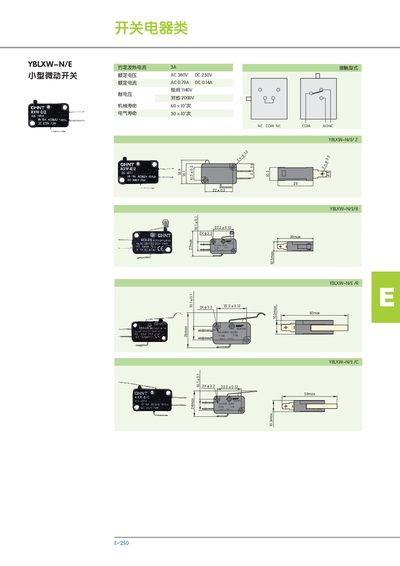

The document describes the features and characteristics of the E 250 E switch electrical appliance YBLXW-N/E miniature micro switch, including rated voltage, rated current, mechanical life, electrical life, etc.
This manual provides the essential information for installing and operating the YBLXW‑N/E micro move switch. It lists the electrical ratings, mechanical dimensions, and contact specifications required for proper integration into control circuits.
The document also includes wiring diagrams and safety notes such as the maximum withstand voltage and recommended contact types. Use the data below to verify compatibility with your system before installation. This manual is written in Chinese.
| Rated Voltage (AC) | 380 V |
|---|---|
| Rated Voltage (DC) | 250 V |
| Contact Rating (AC) | 0.79 A |
| Withstand Voltage (to ground) | 2000 V |
The maximum AC voltage rating is 380 V and the maximum DC voltage rating is 250 V.
The switch can withstand up to 2000 V to ground.
