This document introduces the features and characteristics of the E 244 E switch appliance, including protection level, rated voltage, rated current, mechanical life, electrical life, and operating frequency. This product is suitable for applications such as automatic control, motion restriction, and actuation or program control of machine tools and machinery.
The YBLXW 6/11 series micro‑move switch is designed for use in machine tools, automation equipment, and other industrial applications requiring precise position control and limit switching. It operates on AC 380 V or DC 220 V and meets standards GB 14048.5 and IEC 60947‑5‑1.

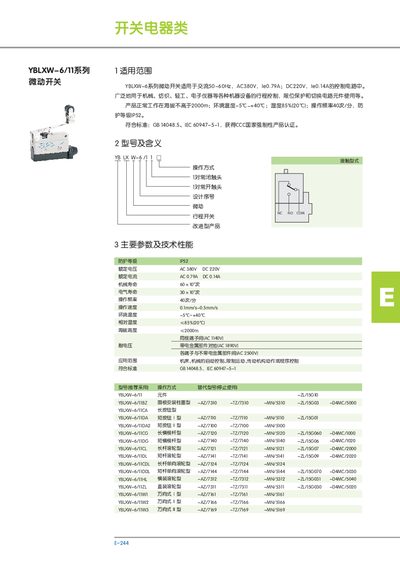

Key information includes rated voltages and currents, IP52 protection, mechanical and electrical life, operating speed, temperature and humidity limits, as well as detailed dimensions and mounting guidelines for various switch models within the series. This manual is written in Chinese.
| Rated AC Voltage | 380 V |
|---|---|
| Rated DC Voltage | 220 V |
| Rated AC Current | 0.79 A |
| Rated DC Current | 0.14 A |
| Mechanical Life | 60 × 10⁴ cycles |
| Electrical Life | 30 × 10⁴ cycles |
| Operating Speed | 40 cycles/min |
| Control Speed | 0.1 mm/s – 0.5 mm/s |
| Operating Temperature Range | -5 °C to +40 °C |
| Relative Humidity | 85 % (20 °C) |
| Maximum Altitude | 2000 m |
| Contact Voltage Rating | AC 1140 V |
| Insulation Resistance | AC 1890 V |
| Power Rating | AC 2500 W |
The rated voltages are AC 380 V and DC 220 V.
It can operate from –5 °C up to +40 °C.
