YBLX-X2 series limit switch is used in AC50Hz, Ue380V and below circuit, as travel control and limit switch.
The YBLX X2 series stroke switch is designed for AC 50 Hz, up to 380 V applications such as stroke control and limit switching. It complies with GB 14048.5, IEC 60947‑5‑1 and relevant national standards.

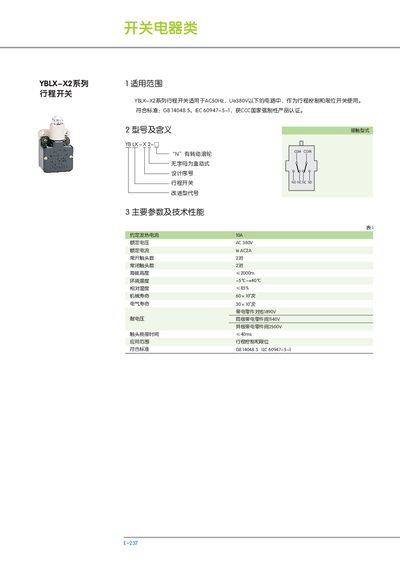

The document provides model identification, key technical parameters, electrical ratings, temperature limits, insulation voltages and installation dimensions, helping users correctly install and operate the device. This manual is written in Chinese.
| Rated Voltage | AC 380 V |
|---|---|
| Insulation Voltage (to ground) | 1890 V |
| Insulation Voltage (between parts) | 2500 V |
It is rated for AC 380 V.
