YBLX-JW2 series microswitch travel switch is suitable for AC50 60Hz, Ue380VIe3A DC Ue220VIe0.42A below the line, as an automatic control system to convert mechanical movement into electric signal switch element.
The YBLX-JW2 series stroke switches are designed for automatic control systems to convert mechanical motion into electrical signals. They are suitable for AC 50‑60 Hz lines up to 380 V (AC) or 220 V (DC) and meet GB 14048.5 and IEC 60947‑5‑1 standards.

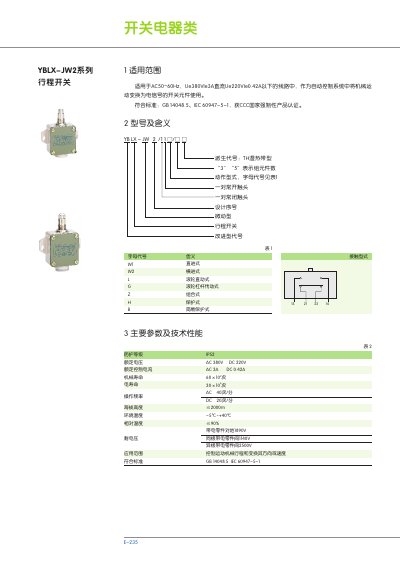

Key data include IP52 protection, rated voltage AC 380 V / DC 220 V, rated control current AC 3 A / DC 0.42 A, mechanical life of 60 × 10⁴ operations, electrical life of 40 cycles/min (AC) or 20 cycles/min (DC), operating temperature –5 °C to +40 °C, and humidity up to 90 %. Various action types and travel ranges are offered, and ordering requires specifying the exact model and quantity. This manual is written in Chinese.
It complies with GB 14048.5 and IEC 60947‑5‑1 standards.
Include the model, name, and quantity, e.g., "YBLX-JW2/11Z/3 行程开关 100只".
