YBLX YBLX-29 Stroke Switch Manual

YBLX-29 series limit switch is suitable for AC50Hz, Ue380V, Ie0.26A.DC220V control lines, as a control motion mechanism to change its motion direction or speed.

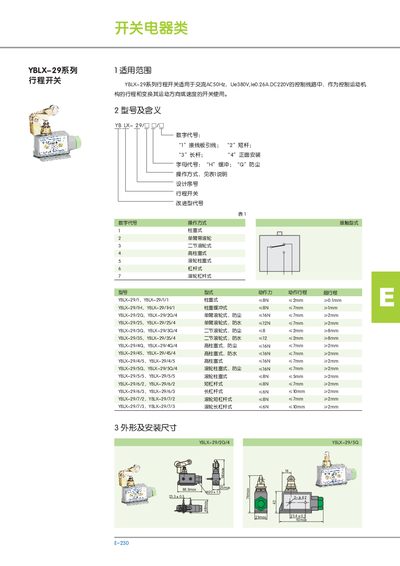

YBLX YBLX-29 Stroke Switch Manual - cover page
Brand
YBLX-29系列
Category
Industrial Supply
Document type
User Manual
Language
Chinese
Pages
2
File format
PDF
File size
2 MB
Published
15 March, 2012
Updated
30 September, 2023
MD5 checksum
6388B387582655EE294DA9D58DD744F8
PDF
YBLX YBLX-29 Stroke Switch Manual PDF

About this manual

The YBLX-29 series stroke switches are used in control circuits with AC 50 Hz 380 V (0.26 A) or DC 220 V. They control the travel distance and direction of the switching mechanism.

Several variants are listed with different contact types, force ratings and stroke lengths. The document includes model codes, contact style tables, and dimensional data for installation. This manual is written in Chinese.

What's inside

  • Stroke Switch Overview
  • Model and Specifications
  • Contact Types
  • Force and Stroke Ratings
  • Dimensions and Installation Size

Specifications

Operating Voltage (AC)380 V 50 Hz
Operating Voltage (DC)220 V

Frequently asked questions

What are the operating voltages for the YBLX-29 stroke switch?

It can be used with AC 50 Hz 380 V (0.26 A) or DC 220 V.

Download PDF (2 MB)
