YBLX-12/2 series limit switches are switch electrical appliances produced by Shanghai Yi Dian Switch Co., Ltd., with rated voltage of AC 380V, DC 220V, rated heating current of 3A, operating stroke of ≤7mm, rated working current of AC 0.26A, DC 0.14A, super stroke of ≥1mm, operating force of ≤16N, and meet GB 14048.5, IEC 60947-5-1 standards.

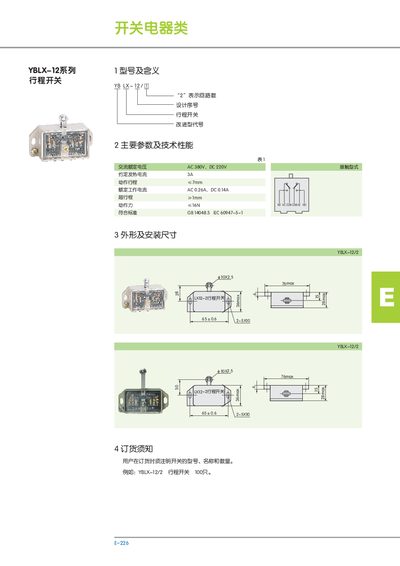

This manual provides the key technical parameters of the YBLX-12 stroke switch, including rated voltages, currents, travel limits and operating force. It also lists the applicable standards such as GB 14048.5 and IEC 60947-5-1.
The document includes physical dimensions and mounting guidelines, with reference drawings for the switch housing. It also explains how to identify the model and quantity when ordering or inventorying the devices. This manual is written in Chinese.
| Rated AC Voltage | AC380V |
|---|---|
| Rated DC Voltage | DC220V |
| Rated AC Current | 0.26A |
| Rated DC Current | 0.14A |
| Travel | <7 mm |
| Over‑travel | ≤1 mm |
| Operating Force | <16 N |
The switch is rated for AC 380 V and DC 220 V.
It complies with GB 14048.5 and IEC 60947‑5‑1.
