YBLX-10 series limit switches are used in AC50Hz, Ue380V, DC220V, Ie10A or less electrical control lines as terminal protection and limit control switches for various cranes, metallurgical and water equipment structures.
The YBLX-10 series stroke switch is designed for AC 50 Hz, up to 380 V and DC 220 V circuits with a current rating below 10 A. It is used for endpoint protection and travel‑limit control in cranes, metallurgical and water‑handling equipment.

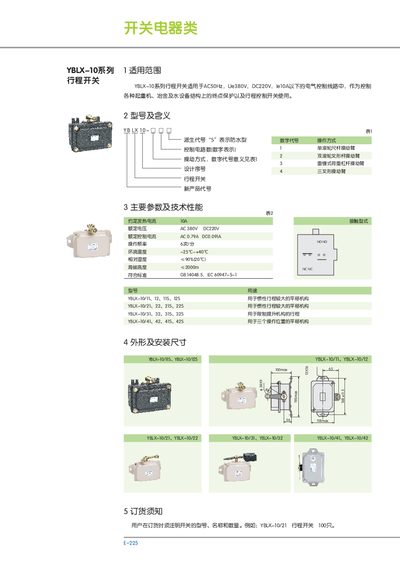

The document provides model designations, key technical parameters, physical dimensions, installation guidelines and ordering instructions for the various YBLX-10 variants. This manual is written in Chinese.
| Rated Voltage | AC 380 V, DC 220 V |
|---|---|
| Rated Current | AC 0.79 A, DC 0.091 A |
| Operating Frequency | 6 times/min |
| Operating Temperature Range | -25 °C to +40 °C |
| Relative Humidity | 90 % RH |
| Maximum Altitude | 2000 m |
The switch is rated for AC 380 V and DC 220 V.
The rated current is 0.79 A for AC and 0.091 A for DC.
The switch can operate from –25 °C up to +40 °C.
It can operate at a rate of 6 times per minute.
