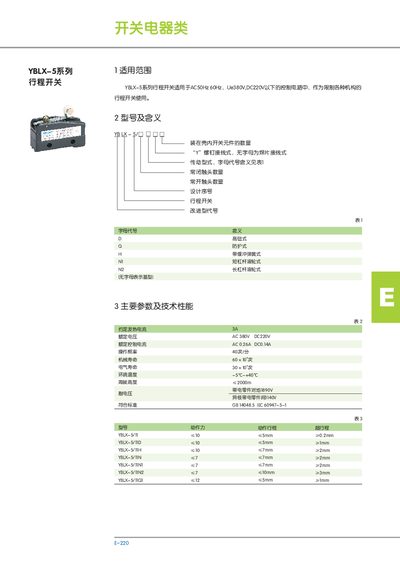

This document describes the features and characteristics of the YBLX-5 series limit switches, including the scope of application, model and meaning, main parameters and technical performance, etc.
This manual describes the YBLX-5 series stroke switches, including their function, model variants, and contact types (COM, NO, NC). It outlines the main technical parameters such as rated voltage, control current, operating speed, and environmental limits.
The document also gives detailed installation dimensions and mechanical specifications, helping users correctly mount and configure the switches for AC 50/60 Hz or DC 220 V applications. This manual is written in Chinese.
| Rated voltage | AC380V / DC220V |
|---|---|
| Rated control current | AC0.26A / DC0.14A |
| Operating speed | 40 cycles/min |
| Electrical life | 30 × 10⁴ cycles |
| Operating temperature range | -5 °C to +40 °C |
| Maximum altitude | 2000 m |
| Insulation voltage | 1890 V |
The switch is rated for AC380 V and DC220 V.
It operates at 40 cycles per minute.
The series provides COM, NO, and NC contact types.
It can be used from –5 °C up to +40 °C.
