YBLX-2 series limit switch is a mechanical limit switch, which is used to control the stroke of the moving mechanism or change its direction or speed.

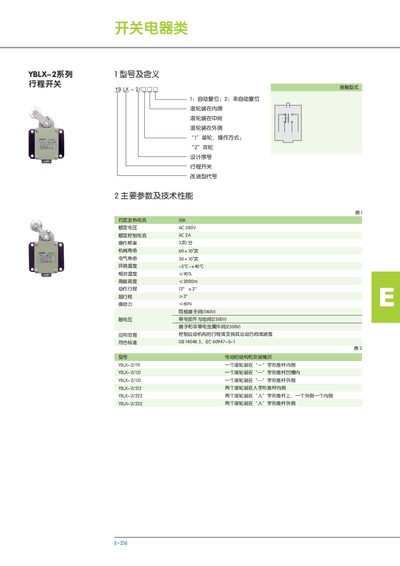

This manual describes the YBLX-2 series stroke switches, including model identification, electrical and mechanical characteristics, and safety compliance. It lists the different model variants and their mounting configurations.
Key sections cover the main technical parameters such as rated current, voltage, operating speed, and environmental limits, as well as detailed dimensions and installation guidelines for each model variant. This manual is written in Chinese.
| Rated voltage (AC) | 380 V |
|---|---|
| Rated control current (AC) | 2 A |
| Operating speed | 3 cycles/min |
| Electrical life | 30 × 10 cycles |
| Ambient temperature range | -5 °C to +40 °C |
| Relative humidity (max) | 90 % |
| Maximum altitude | 2000 m |
| Maximum operating force | 60 N |
| Insulation voltage (between terminals) | 2500 V |
The switch operates at 3 cycles per minute.
It can operate from –5 °C to +40 °C.
Maximum relative humidity is 90 % and it can be used up to 2000 m altitude.
