The YBLX-K2 series travel switch is a type of switch used for travel control, direction or speed change of motion, automatic control of machine tools, limit action of motion mechanism, and control of travel or program in electrical circuits. The travel switch has different models and characteristics, including different travel, action force, and overtravel, etc. It complies with GB 14048.5 and IEC 60947-5-1 standards.
The YBLX K2 series stroke switches are designed for AC 50‑60 Hz circuits (up to 380 V AC, 0.8 A) and DC circuits (up to 220 V DC, 0.15 A). They provide normally open and normally closed contacts and support multiple actuation modes such as single‑wheel, double‑wheel, plunger, and roller‑plunger.

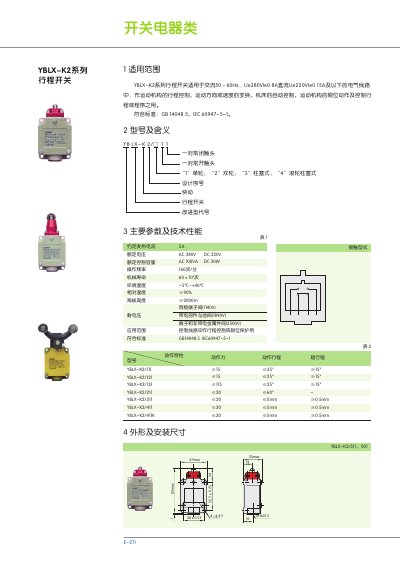

The manual lists the series' technical parameters, compliance with GB 14048.5 and IEC 60947‑5‑1 standards, and ordering information, including model designations and dimensions for proper installation. This manual is written in Chinese.
| Actuation travel | ≤35° |
|---|
It complies with GB 14048.5 and IEC 60947‑5‑1.
Each switch provides one normally closed and one normally open contact pair.
