YBLX-ME/8000 series limit switches are suitable for AC 50～60Hz,Ue380VIe0.8A DC Ue220VIe0.16A and below electrical circuits, for the control of travel of motion mechanism, the conversion of motion direction or speed, automatic control of machine tools, limit action of motion mechanism and control of travel or program.

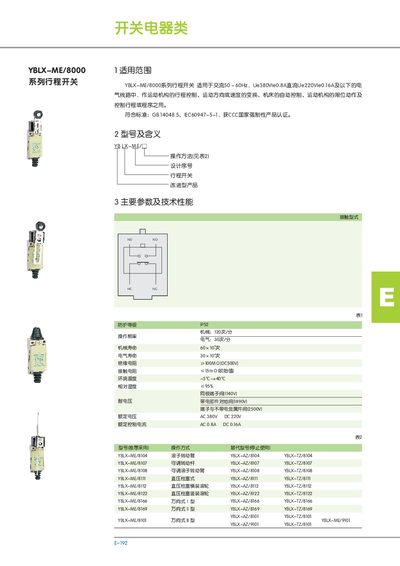

This manual describes the YBLX ME/8000 series stroke switches, which are used for motion control, direction or speed conversion, and limit functions in machine tools. The document notes compliance with GB 14048.5 and IEC60947-5-1 standards.
Key sections include main technical parameters, electrical ratings, model variants, and physical dimensions with mounting details. Tables list contact types, IP protection, voltage and current ratings, temperature range, and other performance data to aid installation and maintenance. This manual is written in Chinese.
| IP protection rating | IP52 |
|---|---|
| Rated AC voltage | AC 380 V |
| Rated AC current | 0.8 A |
| Rated DC voltage | DC 220 V |
| Rated DC current | 0.16 A |
| Operating temperature range | -5 °C to +40 °C |
| Maximum relative humidity | 95 % |
| Contact resistance (initial) | <15 mΩ |
| Maximum switching frequency | 120 cycles/min |
| Insulation voltage | 2500 V |
It complies with GB 14048.5 and IEC60947-5-1.
The device has an IP52 protection rating.
It operates from –5 °C up to +40 °C.
