LW32 series universal switching switch can be used in the main circuit with rated working voltage of 440V and below and direct current voltage of 240V and below for switching, breaking and converting circuits, and can also be used to directly control small capacity motors and for main control and circuit measurement.

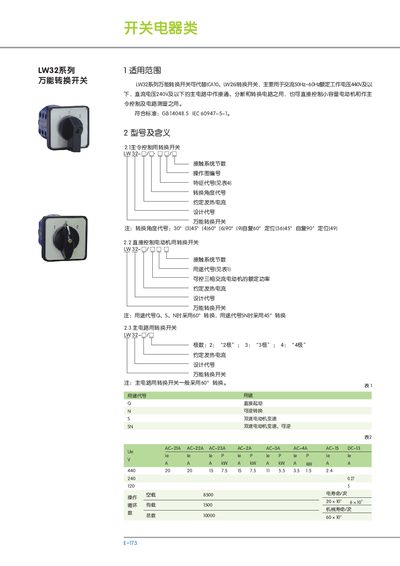

This manual describes the LW32 series universal switching device, which can replace CA10, LW26 and other units for AC 50‑60 Hz applications up to 440 V. It details the rated voltage, power options, and the ability to control small‑capacity loads and measurement circuits.
The document includes sections on model codes, operation angles (30°, 45°, 60°, 90°), handle colors, and panel size options for both large and small installations, along with wiring and connection tables. This manual is written in Chinese.
| Rated voltage (low) | 240 V AC |
|---|---|
| Operation frequency | 50‑60 Hz |
| Available operation angles | 30°, 45°, 60°, 90° |
The switch supports operation angles of 30°, 45°, 60°, and 90°.
Handle colors include red, gold, white, and blue.
