LW112 universal transfer switch is mainly suitable for AC 50 60Hz, voltage 380V and below, DC voltage 220V and below circuit to convert electrical control lines and electrical measuring instruments. It can also directly control 5.5kW and below three-phase AC squirrel cage induction motors. It is mainly used for instrumentation, micromotors, solenoid valves and other control lines.
The LW112 universal transformer switch is designed for AC 50‑60 Hz power supplies up to 380 V and can control loads of 220 V or less on four channels. It complies with GB 14048.5 and IEC 60947‑5‑1 standards and can directly drive three‑phase AC motors up to 5.5 kW.

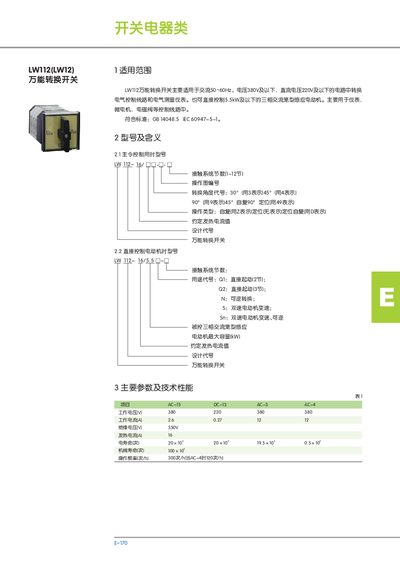

The manual provides the main parameters, mechanical dimensions, and the coding for control angles and operation modes, as well as wiring and installation guidelines. This manual is written in Chinese.
| Rated voltage (W) | 380 V |
|---|---|
| Rated voltage (DC‑13) | 220 V |
| Rated current (W) | 2.6 A |
| Standard compliance | GB 14048.5, IEC 60947‑5‑1 |
It complies with GB 14048.5 and IEC 60947‑5‑1.
