LW6 universal transfer switch is mainly used in AC 50Hz~60Hz, voltage up to 380V, DC voltage up to 220V machine tool control circuit, control and conversion lines. It can also be used for other occasions to convert control lines, such as electromagnetic coils, electrical measuring instruments, etc.

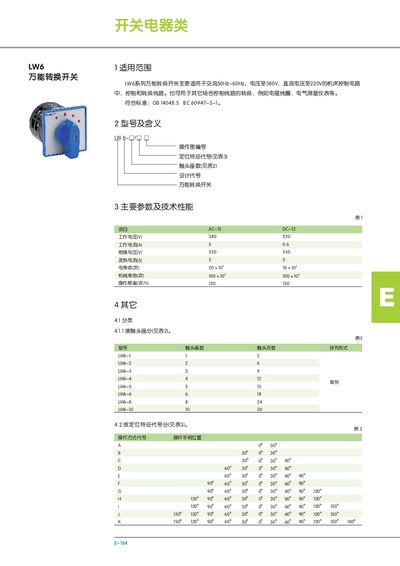

This manual describes the LW6 series universal transform switch used for machine‑tool control circuits. It lists the applicable standards, model variants, contact‑base configurations and technical performance data such as voltage and current ratings.
Installation information includes physical dimensions, mounting plate thickness and positioning codes for different models, helping users select the correct configuration for their application. This manual is written in Chinese.
| Applicable Standard | GB 14048.5 IEC 60947-5-1 |
|---|---|
| AC Current Rating | AC‑15 |
| DC Current Rating | DC‑13 |
| Working Voltage (AC) | 380 V |
| Working Voltage (DC) | 220 V |
| Contact Bases for LW6‑4 | 4 bases, 12 contacts |
It complies with GB 14048.5 and IEC 60947‑5‑1.
Model LW6‑4 has 4 contact bases providing 12 contacts.
The AC rating is AC‑15 and the DC rating is DC‑13.
The switch works at 380 V AC and 220 V DC.
