The LW5D universal transfer switch is suitable for AC 50~60Hz, voltage up to 380V, DC voltage up to 440V circuit to switch electrical control lines (solenoids, electrical measuring instruments and servo motors, etc.), and it can also be directly controlled 5.5kW three-phase squirrel cage induction motor (start, reverse conversion, speed change).
The Philips LW5D universal conversion switch series is designed for AC 50‑60 Hz circuits up to 380 V and DC circuits up to 440 V, suitable for controlling electromagnetic coils, measurement instruments and servo motors, and can directly drive a 5.5 kW three‑phase cage motor. The switches comply with GB 14048.5 and IEC 60947‑5‑1 standards and are offered in main‑command and direct‑control versions, with positioning or self‑return operation types.

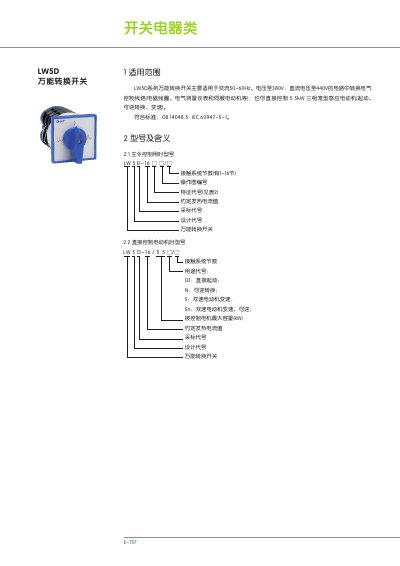

The document provides detailed model designations, technical parameters, classification by usage, physical dimensions, ordering instructions, and extensive wiring diagrams for various contact configurations and motor control functions. This manual is written in Chinese.
| Rated Voltage (AC) | 500 V |
|---|---|
| Rated Current (AC) | 2.0 A |
It supports AC 50‑60 Hz up to 380 V and DC up to 440 V.
It complies with GB 14048.5 and IEC 60947‑5‑1.
