Microscan QX-870 Laser Scanner Implementation Manual

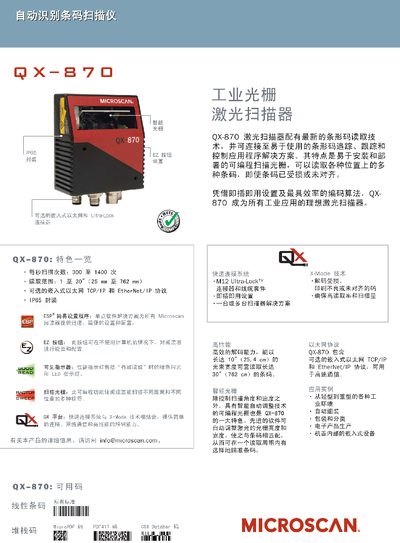

Microscan QX-870 Laser Scanner Implementation Manual - cover page
Brand
QX-870
Category
Automation control Equipment
Document type
User Manual
Language
Chinese
Pages
2
File format
PDF
File size
5.2 MB
Published
15 March, 2012
Updated
24 April, 2012
MD5 checksum
FB3C5CB835DDC876D4FDEB68B794B639
PDF
Microscan QX-870 Laser Scanner Implementation Manual PDF

About this manual

This manual describes the QX-870 laser scanner from Microscan, covering its mechanical dimensions, environmental ratings, and electrical requirements. It includes detailed information on scanning parameters, communication interfaces, and safety certifications.

The document also provides read‑range data for different label densities, pin‑assignment tables for serial and Ethernet connectors, and guidance on configuring the device for TCP/IP and EtherNet/IP networks. This manual is written in Chinese.

What's inside

  • Mechanical
  • Environmental
  • EMISSIONS
  • COMMUNICATION INTERFACE
  • SYMBOLOGIES
  • READ RANGES
  • SCANNING PARAMETERS
  • PROTOCOLS
  • PIN ASSIGNMENTS
  • SAFETY CERTIFICATIONS

Specifications

Scan rateAdjustable from 300 to 1400 scans/sec
Operating temperature0 °C to 50 °C
Enclosure IP ratingIP65
Power requirement10‑28 VDC, 270 mA @ 24 VDC
Laser wavelength655 nm (nominal)
Laser safety classClass 2 (visible)
Height4.29 in (109 mm)
Weight16 oz (453 g)
Communication interfacesRS‑232/422/485 and Ethernet
Supported protocolsTCP/IP, EtherNet/IP

Frequently asked questions

What communication interfaces does the QX-870 support?

It supports RS‑232/422/485 serial ports and Ethernet connections.

What is the IP rating of the QX-870 enclosure?

The enclosure is rated IP65.

What temperature range can the QX-870 operate in?

It operates from 0 °C to 50 °C.

What laser safety class is the QX-870?

The laser is a Class 2 visible laser.
