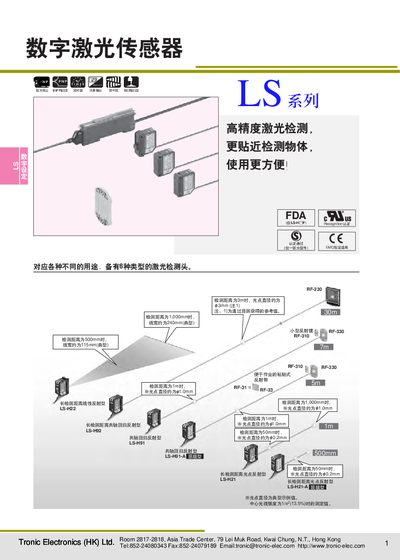

LS series digital laser sensors are high-precision laser detectors that provide closer to the object of detection, more convenient to use. The series has 6 types of laser detection heads to meet various different uses.
This manual provides instructions for using the LS series laser sensors from Tronic Electronics. It includes application examples, installation guidelines, and detailed specifications for each sensor model.
The document also lists optional accessories, ordering information, and mechanical drawings to help users set up and maintain the sensors in various industrial environments. This manual is written in Chinese.
| Laser wavelength | 655 nm |
|---|---|
| Output power | up to 3 mW |
| Operating temperature | 10 °C to +55 °C |
| Storage temperature | -20 °C to +70 °C |
| Weight (unit) | ≈309 g |
The sensor head should be mounted with a spacing of 25.4 mm.
A spot adjustment knob on the back of the sensor head allows simple adjustment while observing the spot.
Models LS‑H91(F), LS‑H91(F)-A and LS‑H92(F) are available without a reflection mirror.
Standard cable length is 2 m; a 5 m cable option is available by adding “-C5” to the model number.
