SC3L ultra-miniature electronic timer is powered by a built-in lithium battery, with a small size and suitable for various circuits for timing.
The SC3L electronic hour meter is a compact device with an internal lithium battery, suitable for measuring accumulated time in various circuits. It supports multiple input signal types (no voltage, DC, AC) and offers several accumulated‑time display ranges.

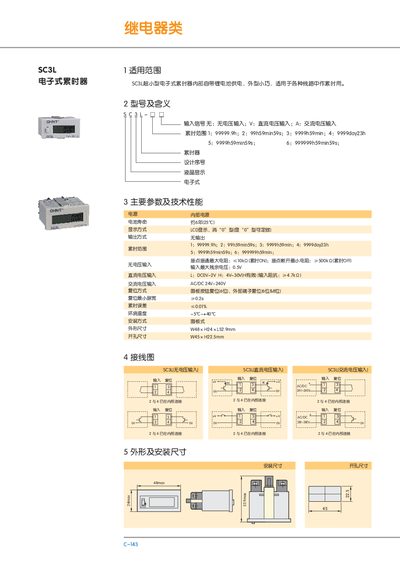

The manual provides key technical parameters, wiring diagrams, and dimensions for panel‑mount installation, including battery life, operating temperature, and reset methods. This manual is written in Chinese.
| Battery life | ≈6 years |
|---|---|
| Display type | LCD |
| Output method | None |
| Input signal types | None, DC voltage, AC voltage |
| Operating temperature | -5 °C to +40 °C |
| Reset method | Panel button or external terminal |
| Dimensions (W×H×D) | 48 mm × 24 mm × 152.9 mm |
The battery lasts about six years.
It works from –5 °C up to +40 °C.
It can be reset using a panel button or an external terminal.
The device supports no voltage input, DC voltage input, and AC voltage input.
