JDM1-9 counter relay is suitable for control circuit with AC50Hz frequency, rated control power supply voltage up to 380V and DC rated control power supply voltage up to 240V as a counting or counting control element.
The JDM1-9 is a count relay designed for control circuits with AC frequency 50 Hz and rated control voltages up to 380 V AC or 240 V DC. It supports a wide range of supply voltages, offers low‑speed (30 counts/s) and high‑speed (200 counts/s) modes, and provides four counting bits with optional add/subtract functions.

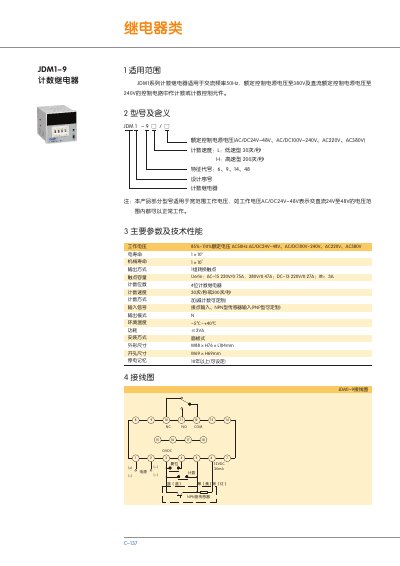

The manual includes the main technical parameters, wiring diagrams, timing charts, physical dimensions, installation instructions, and input/output specifications. It also lists environmental limits, power consumption, and contact ratings for proper integration into control systems. This manual is written in Chinese.
| Rated control voltage | AC/DC 24‑48 V, AC/DC 100‑240 V, AC 220 V, AC 380 V |
|---|---|
| Counting speed (low) | 30 counts per second |
| Counting speed (high) | 200 counts per second |
| Count bits | 4 |
| Physical dimensions (W×H×L) | 88 mm × 76 mm × 104 mm |
| Opening size | 69 mm × 69 mm |
| Input sensor type | NPN (PNP optional) |
| Output contacts | 1 set of changeover contacts |
| Maximum contact rating | AC‑15 220 V/0.75 A, 380 V/0.47 A; DC‑13 220 V/0.27 A; Ith = 3 A |
It supports AC/DC 24‑48 V, AC/DC 100‑240 V, AC 220 V, and AC 380 V.
The relay provides four counting bits.
