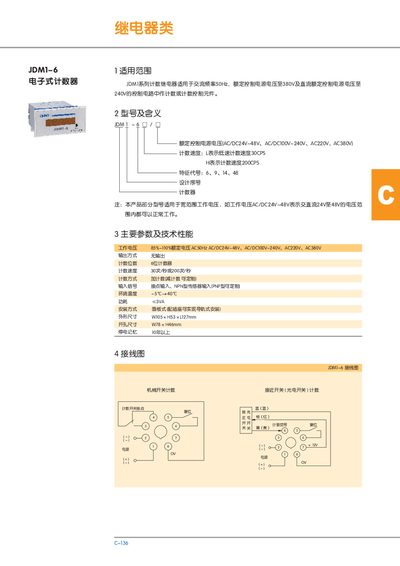

JDM1-6 electronic counter is suitable for control circuit with alternating frequency of 50Hz, rated control power supply voltage of up to 380V and direct current rated control power supply voltage of up to 240V.
The JDM1-6 is a 6‑digit electronic counter designed for a wide range of control voltages and counting speeds. It supports both AC and DC inputs and offers customizable input signal types such as contact, NPN, and PNP sensors.
Key specifications include rated control voltages of 24‑48 V, 100‑240 V, 220 V and 380 V, counting speeds of 30 CPS or 200 CPS, a power consumption of 3 VA, and an operating temperature range of –5 °C to +40 °C. The device measures approximately 105 mm × 53 mm × 27 mm (panel type) with mounting holes of 78 mm × 46 mm and a service life of over 10 years. This manual is written in Chinese.
| Rated control voltage | AC/DC 24‑48 V, 100‑240 V, 220 V, 380 V |
|---|---|
| Display digits | 6‑digit |
| Input signal types | Contact, NPN sensor, PNP sensor (customizable) |
| Operating temperature | -5 °C to +40 °C |
| Physical dimensions (panel) | W 105 mm × H 53 mm × D 27 mm |
| Mounting hole dimensions | W 78 mm × H 46 mm |
| Service life | 10+ years |
It supports AC/DC 24‑48 V, 100‑240 V, 220 V and 380 V control voltages.
The counter provides a 6‑digit display.
It operates from –5 °C up to +40 °C.
