NJJ6 counter relay is a counter relay suitable for control circuit of AC frequency 50Hz and DC rated control power supply voltage up to 240V.

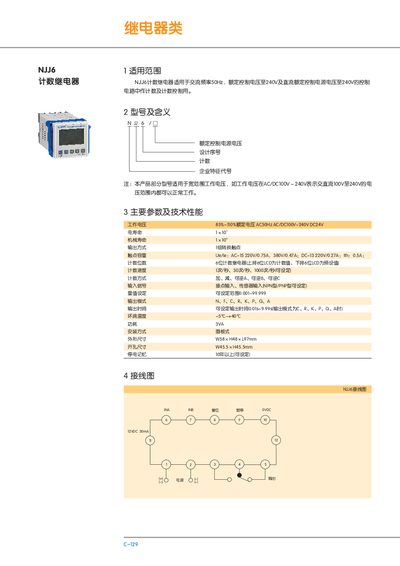

This manual describes the NJJ6 count relay, a panel‑mount device with a 6‑digit LCD display for counting operations. It lists the electrical ratings, power consumption, contact ratings, and supported counting modes such as add, subtract, and reversible modes A‑C.
Installation dimensions, mounting style, and wiring details are provided, along with temperature limits and output timing settings. The document also includes tables for output modes and timing diagrams. This manual is written in Chinese.
| Rated Voltage | AC/DC 100 V‑240 V |
|---|---|
| Contact Rating | AC‑15 220 V/0.75 A, 380 V/0.47 A; DC‑13 220 V/0.27 A |
| LCD Display Digits | 6‑digit |
| Counting Speed | 1.9 counts/s, 30 counts/s, 1000 counts/min |
| Operating Temperature | -5 °C to +40 °C |
| Dimensions (W × H × L) | 58 mm × 48 mm × 97 mm |
| Mounting Type | Panel mount |
| Contact Count | 1 × 10 |
The relay is rated for AC/DC 100 V to 240 V.
It has a 6‑digit LCD display.
The size is 58 mm wide, 48 mm high, and 97 mm long.
