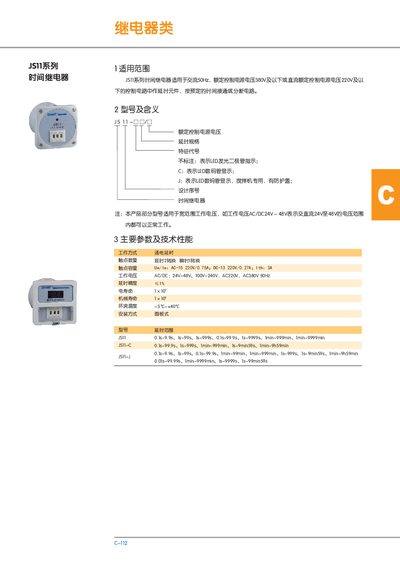

JS11 series time relay is suitable for AC 50Hz, rated control power supply voltage 380V and below or DC rated control power supply voltage 220V and below control circuit as delay element, according to the preset time to turn on or turn off the circuit.
The document details the various models of the JS11 time relay, including the standard JS11 and the JS11‑C, and lists their selectable timing ranges from fractions of a second up to several thousand minutes. It also describes the electrical characteristics such as contact capacity, operating voltage, and delay accuracy.
Installation information includes the panel‑mount style, environmental temperature limits, mechanical life expectancy, and the physical dimensions of each model (approximately 125 mm × 90 mm). This manual is written in Chinese.
| Contact capacity (AC) | 220V/0.75A |
|---|---|
| Contact capacity (DC) | 220V/0.27A |
| Operating voltage | 24V‑48V, 100V‑240V, AC220V, AC380V 50Hz |
| Delay accuracy | ±1 % |
| Mechanical life | 1×10⁶ cycles |
| Dimensions (JS11) | 125 mm × 90 mm |
The AC contact rating is 220 V / 0.75 A and the DC contact rating is 220 V / 0.27 A.
The relay measures approximately 125 mm by 90 mm.
