JSS1 series time relay is suitable for AC 50Hz, rated control power supply voltage 380V and DC rated control power supply voltage 220V control circuit as delay element, according to the preset time to connect or disconnect the circuit.
The JSS1 series time relays are designed for use in AC 50 Hz control circuits with rated control voltages of 380 V AC or 220 V DC. They provide programmable delay functions ranging from fractions of a second up to several hours, with selectable contact configurations and mounting options.

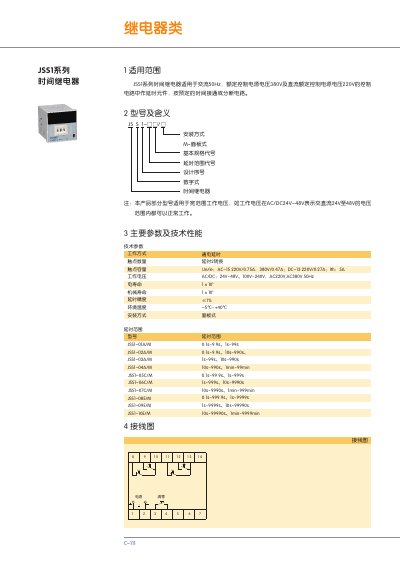

The document lists the delay ranges, operating voltage options, contact ratings, electrical and mechanical life, timing accuracy, ambient temperature limits, physical dimensions and wiring diagrams for each model in the series (JSS1‑01A/M, JSS1‑02A/M, etc.). This manual is written in Chinese.
| Delay range (JSS1‑01A/M) | 0.1 s–9.9 s, 1 s–99 s |
|---|---|
| Applicable voltage | AC/DC 24 V–48 V, 100 V–240 V, AC 220 V, AC 380 V |
| Contact rating (Ue/Ie) | AC‑15 220 V/0.75 A, 380 V/0.47 A; DC‑13 220 V/0.27 A; Ith 5 A |
They can operate on AC or DC voltages from 24 V to 48 V, 100 V to 240 V, as well as standard AC 220 V and AC 380 V supplies.
