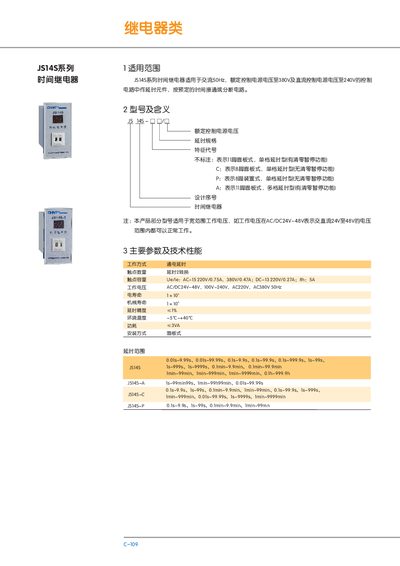

JS14S series time relay is suitable for control circuit with AC 50Hz, rated control power supply voltage up to 380V and DC control power supply voltage up to 240V, as a delay element, to connect or disconnect the circuit at a predetermined time.
The JS14S series time relay is designed for AC 50 Hz circuits with rated control voltages up to 380 V and DC control voltages up to 240 V. It provides delay functions that can be set to connect or disconnect circuits after a preset time. The manual describes the model codes, technical parameters, wiring diagrams and mechanical dimensions.
The document lists the electrical and mechanical life, power consumption, delay accuracy, operating temperature range, installation method and the available delay ranges for each model variant (JS14S, JS14S‑A, JS14S‑C, JS14S‑P). Wiring diagrams and mounting dimensions are provided for proper installation. This manual is written in Chinese.
| Rated control voltage (AC) | 50 Hz, up to 380 V |
|---|---|
| Rated control voltage (DC) | up to 240 V |
| Electrical life | 1×10⁶ cycles |
| Mechanical life | 1×10⁶ cycles |
| Delay accuracy | ±1 % |
| Operating temperature range | -5 °C to +405 °C |
| Power consumption | 3 VA |
| Installation method | Panel‑mount |
It can operate on AC voltages from 50 Hz up to 380 V.
The electrical life is rated at 1 × 10⁶ operations.
The delay accuracy is within ±1 %.
