JS14P series time relay is suitable for AC 50Hz, rated control power supply voltage up to 380V and DC rated control power supply voltage up to 240V. The control circuit is used as a delay element to connect or disconnect the circuit according to the preset time.
The JS14P series time relays are designed for use in automatic control circuits with AC 50 Hz supply up to 380 V and DC supply up to 240 V. They function as delay elements that connect or disconnect circuits after a preset time.

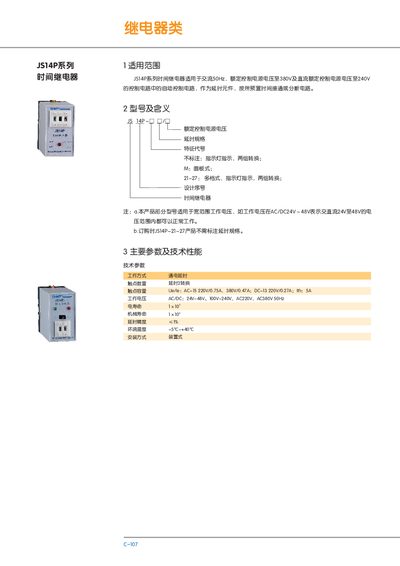

The manual lists model designations, technical parameters such as contact ratings, electrical life, temperature range, and installation type, as well as detailed wiring diagrams and dimensional drawings for the various variants (JS14P‑21 to JS14P‑27). This manual is written in Chinese.
| Rated AC control voltage | up to 380 V |
|---|---|
| Rated DC control voltage | up to 240 V |
| Contact rating | AC‑15 220 V 0.75 A, 380 V 0.47 A; DC‑13 220 V 0.27 A; 5 A |
| Operating temperature range | -55 °C to +40 °C |
It supports AC control voltages up to 380 V and DC control voltages up to 240 V.
Model JS14P‑21 provides delay ranges of 0.1 s to 9.9 s and 1 s to 99 s.
The contacts are rated AC‑15 220 V 0.75 A, 380 V 0.47 A; DC‑13 220 V 0.27 A, and a general rating of 5 A.
The relays operate between –55 °C and +40 °C.
