JSZ6 series time relays have the characteristics of small size, light weight, compact structure, wide delay range, high delay accuracy, good reliability, and long lifespan. They are suitable for high precision and high reliability automatic control systems such as machine tool automatic control and complete equipment automatic control as delay control components.

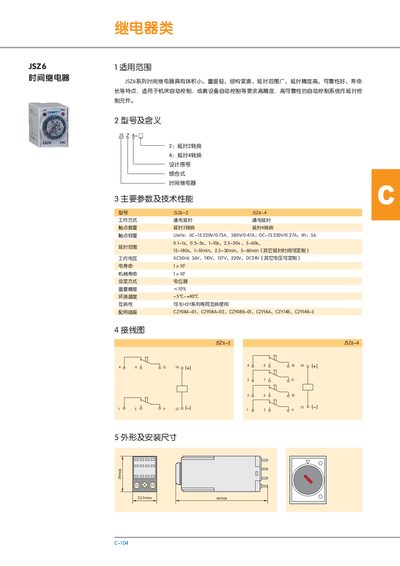

The JSZ6 series time relays are compact, lightweight devices offering high timing accuracy and long service life, suitable for high‑precision automatic control applications. The manual describes the two models (JSZ6‑2 and JSZ6‑4), their contact configurations and compatible accessories.
Key technical data include contact ratings, selectable timing ranges from 0.01 s to 60 min, multiple AC/DC supply voltages, 10 % timing accuracy, operating temperature from –5 °C to +40 °C, and a rated life of 1 × 10⁶ operations. Compatibility with the H3Y series and wiring diagrams for various installations are also covered. This manual is written in Chinese.
| Contact rating | AC‑15 220 V/0.75 A, 380 V/0.47 A; DC‑13 220 V/0.27 A; Hh 5 A |
|---|---|
| Power supply | AC 36 V, 110 V, 127 V, 220 V (50 Hz) or DC 24 V |
| Timing accuracy | ±10 % |
| Operating temperature | -5 °C to +40 °C |
It can be powered from AC 36 V, 110 V, 127 V, 220 V (50 Hz) or DC 24 V, with custom options available.
The timing accuracy is specified as ±10 %.
It operates between –5 °C and +40 °C.
