JSZ3 series time relay has the characteristics of small volume, light weight, compact structure, wide delay range, high delay accuracy, good reliability and long life, which is suitable for machine tool automatic control, complete equipment automatic control and other high precision and high reliability automatic control system as delay control element.

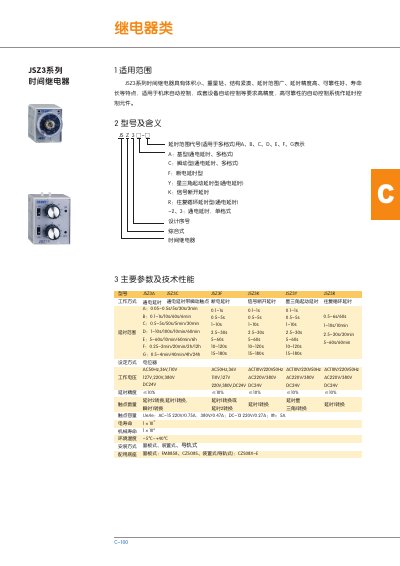

This manual covers the JSZ3 series of time relays, describing their operating principles, delay settings, and application fields such as machine tool and equipment automation. It includes detailed wiring diagrams for each model variant (JSZ3A, JSZ3C, JSZ3F, JSZ3K, JSZ3Y, JSZ3R) and explains installation options (panel, device, rail mounting).\n\nTechnical data such as delay ranges, contact ratings, voltage compatibility, environmental limits, and mechanical dimensions are listed in tables. Ordering information and required accessories (clamps, bases) are also provided to ensure proper integration into control systems. This manual is written in Chinese.
| Delay range (JSZ3A) | 0.05‑0.5 s / 5 s / 30 s / 3 min |
|---|
JSZ3A provides delay settings of 0.05‑0.5 seconds, 5 seconds, 30 seconds, and 3 minutes.
