The NJS2 series time relay is suitable for AC 50Hz, rated control power supply voltage up to 240V and DC control power supply voltage up to 240V control circuit to make time delay element, according to the preset time to connect or disconnect the circuit.

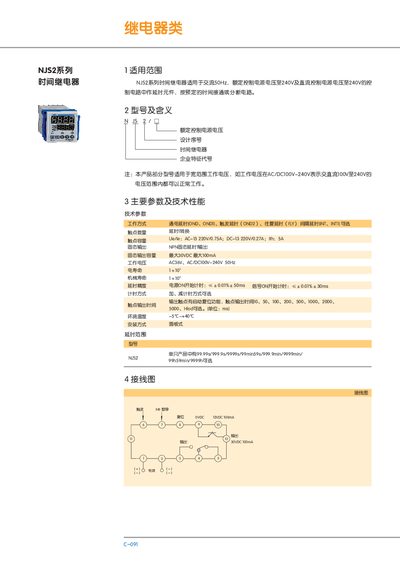

This manual describes the NJS2 series time relay, covering its model variants, electrical ratings, and functional parameters. It includes details on input voltage ranges, output capacities, timing functions, and accuracy specifications.
Installation guidance, physical dimensions, and wiring methods are presented with diagrams and tables, helping users correctly mount and connect the relay in AC or DC circuits. The document also outlines adjustment procedures for delay times and other configurable settings. This manual is written in Chinese.
| Input voltage (DC) | 220 V / 0.27 A (DC‑13) |
|---|---|
| Maximum output current | 100 mA |
