NJS6 series time relay is used for AC voltage 240V and below, frequency 50Hz and DC voltage 240V and below control circuit as a time control element, according to the predetermined time to connect or disconnect the circuit.
The NJS6 series time relay is designed for use in control circuits with AC voltage up to 240 V (50 Hz) or DC voltage up to 240 V. It functions as a timing element that connects or disconnects the circuit after a preset delay, suitable for industrial automation applications.

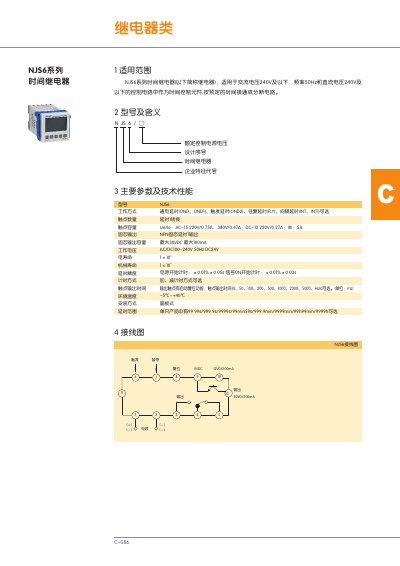

The manual details the available operating modes, such as power‑on delay, trigger delay, oscillating delay, and interval delay, along with wiring diagrams, timing charts, and technical parameters like contact capacity, solid‑state output rating, delay accuracy, and environmental limits. This manual is written in Chinese.
| Operating voltage | AC 100~240V 50Hz, DC 24V |
|---|---|
| Contact capacity | AC‑15 220V/0.75A, 380V/0.47A; DC‑13 220V/0.27A |
| Solid‑state output rating | 30 VDC, 100 mA |
| Delay accuracy | ±0.01% ±0.05 s (power start), ±0.01% ±0.03 s (signal start) |
| Output timing options | 10‑5000 ms, Hold |
It supports power‑on delay (OND, OND1), trigger delay (OND2), oscillating delay (FLY), and interval delay (INT, INT1).
It can be powered from AC 100‑240 V 50 Hz or DC 24 V.
The solid‑state output is rated for up to 30 VDC and 100 mA.
