JZC1 series contactor relays are mainly used in AC 50Hz or 60Hz, rated voltage up to 660V or DC rated voltage up to 600V control circuits, used to control various magnetic coils and used as electric signal amplification and transmission, is to achieve automatic, remote control indispensable low-voltage electrical components.

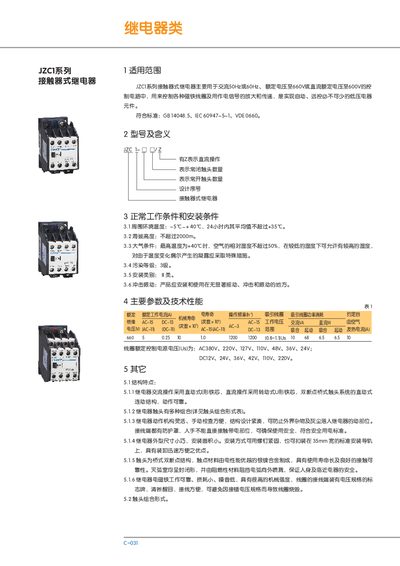

This manual describes the JZC1 series contactor relay, which is used for controlling AC 50/60 Hz loads up to 660 V and DC loads up to 600 V. It outlines the applicable standards (GB 14048.5, IEC 60947‑5‑1, VDE 0660) and the typical applications in automation and control systems.
Key sections cover operating temperature limits, altitude restrictions, environmental conditions, main electrical parameters, mechanical features, contact arrangements, and dimensions with installation instructions. Model numbers and their corresponding ratings are listed for quick reference. This manual is written in Chinese.
| Rated AC Voltage | 380 V, 220 V, 127 V, 110 V, 48 V, 36 V, 24 V |
|---|---|
| Rated DC Voltage | 12 V, 24 V, 36 V, 42 V, 110 V, 220 V |
| Operating Temperature Range | -5 °C to +40 °C |
| Maximum Altitude | 2000 m |
| Standards Compliance | GB 14048.5, IEC 60947‑5‑1, VDE 0660 |
The relay can operate from -5 °C to +40 °C.
It complies with GB 14048.5, IEC 60947‑5‑1, and VDE 0660.
Rated AC voltages are 380 V, 220 V, 127 V, 110 V, 48 V, 36 V, and 24 V.
The relay can be installed up to 2000 m above sea level.
