The CJX2 series AC contactor is mainly used for long-distance on-off control of AC circuits, frequent starting and controlling of AC motors, and can be combined with thermal relays to form electromagnetic starters to protect circuits. It conforms to GB 14048.4 and IEC 60947-4-1 standards.
The CJX2 series AC contactors are designed for use in 50 Hz (or 60 Hz) AC circuits with voltages up to 690 V and currents up to 95 A. They are suitable for long‑distance switching, frequent motor start‑stop control, and can be combined with thermal relays for overload protection.

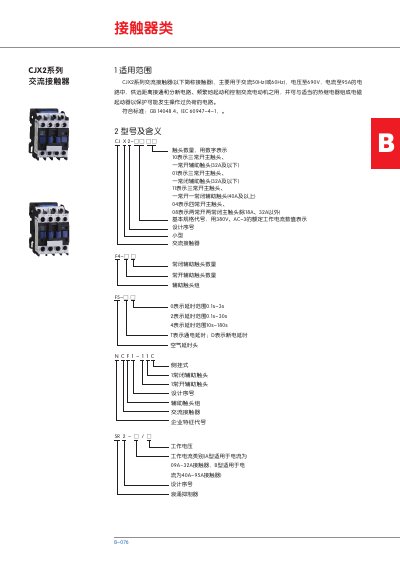

The document provides the applicable standards, environmental limits, installation categories, mechanical and electrical life data, dimensions, auxiliary contact options, and ordering instructions for the various CJX2 models. This manual is written in Chinese.
| Rated Current | Up to 95 A |
|---|---|
| Operating Temperature Range | -5 °C ~ +40 °C (average ≤ +35 °C over 24 h) |
| Maximum Altitude | 2000 m |
| Pollution Degree | Degree 3 |
The surrounding air temperature may be from –5 °C to +40 °C, with the 24‑hour average not exceeding +35 °C.
Installation is permitted up to an altitude of 2000 m.
