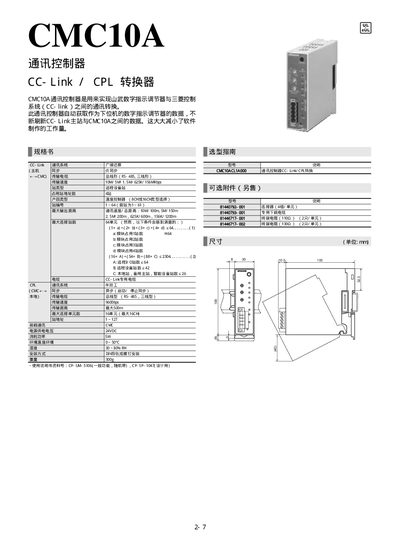

CMC10A communication controller is used to realize communication conversion between Yamatake digital indicator controller and Mitsubishi control system (CC-link). This communication controller automatically obtains data of the digital indicator controller as the lower device and continuously refreshes data between CC-Link master station and CMC10A. This greatly reduces the workload of software production.
The CMC10A communication controller is used to achieve data conversion between a digital indicator and a CC‑Link control system. It automatically acquires data from the lower‑level digital indicator and continuously refreshes the data between the CC‑Link master station and the CMC10A, reducing software development effort.
The device supports RS‑485 three‑wire bus, offers multiple transmission speeds (10 Mbit/s, 5 Mbit/s, 625 kbps, 156 kbps), and provides maximum cable lengths ranging from 100 m to 1200 m depending on speed. It can connect up to 16 units, uses station addresses 1‑64, operates from 0 °C to 50 °C, and can be mounted on a DIN rail or with screws. This manual is written in Chinese.
| Transmission speed options | 10 Mbit/s, 5 Mbit/s, 625 kbps, 156 kbps |
|---|---|
| Maximum connected units | 16 units |
| Station address range | 1‑64 |
| Operating temperature | 0 °C to 50 °C |
| Relative humidity | 0‑80 % RH |
| Installation method | DIN rail or screw mount |
The CMC10A controller converts data between a digital indicator and a CC‑Link control system.
At 625 kbps the maximum cable length is 600 m.
It can be installed on a DIN rail or mounted with screws.
